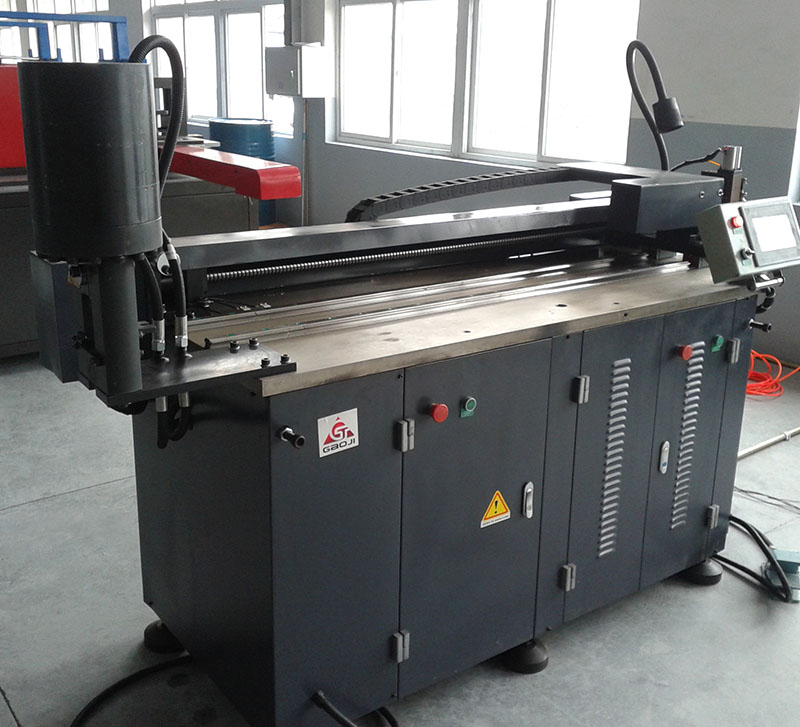

CND tooj liab qws dabtsi yog khoov tshuab 3D dabtsi yog khoov GJCNC-CBG
Main functions thiab nta
CNC tooj liab qws dabtsi yog khoov tshuab yog peb cov khoom patented, nrog CNC qws dabtsi yog khoov thiab txiav; Txuas Qws ua tshuab yog rau ntxiv tiaj tus nias, xuas nrig ntaus thiab chamfering.
Kov Screen kom ceev khoov / tig lub kaum sab xis teeb tsa, nrawm thiab raug.
Tiag tiag 3 D dabtsi yog khoov nrog nws pib khoov lub kaum sab xis, Nws pib lub kaum sab xis thiab nws pib tig lub kaum sab xis.
Nrog cais hydraulic twj tso kua mis, Bending unit thiab txiav tshuab tuaj yeem ua haujlwm tib lub sijhawm.
Nrog txuas Qws ua tshuab, yuav luag ua tau raws li tag nrho cov txheej txheem tooj liab.
Main Technical Parameters
| Kev piav qhia | Chav tsev | Parameter | |
| Bending Unit | quab yuam | kN | 200 |
| Khoov qhov tseeb | 度 | < ± 0.3 * | |
| Thawj Axial Stroke | mm | 1500 | |
| Qws Loj | mm | 8-420 : kuv | |
| Min Bending Angle | Qib | 70 | |
| Lub kaum sab xis tig | degree | 360 | |
| Lub cev muaj zog | kw | 1.5 | |
| Servo zog | kw | 2.25 | |
| Txiav Unit | quab yuam | kN | 300 |
| Lub cev muaj zog | kW | 4 | |
| Qws loj | mm | 8-420 : kuv | |
| Punch Unit | quab yuam | kN | 300 |
| Max Punching Loj | mm | 26 × 32 | |
| Lub cev muaj zog | kw | 4 | |
| Flat Press Unit | quab yuam | kN | 600 |
| Max Xovxwm Ntev |
| 4s | |
| Lub cev muaj zog | kw | 4 | |
| Chav tsev Chamfer | Chav tsev | kN | 300 |
| Lub cev muaj zog | kw | 4 | |
